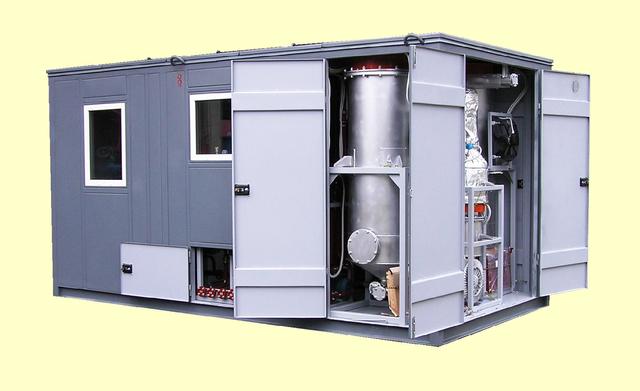

- ETMA URTM-1x2-I U1
аrt.64
The ETMA URTM-1x2-I U1 (hereinafter referred to as the equipment) is designed for the regeneration and filtration of used transformer oils. The unit also prepares a 20% ionol solution, which is then injected into the transformer oil. When equipped with a thermal vacuum treatment (TVT), the equipment also provides oil drying.
- Description
- Technical specifications
- Documents (certificates)
The equipment is used for repairing power transformers and reactors with voltage up to 1150 kV inclusive, in which, as a result of long-term operation, the following characteristics of transformer oil have deteriorated: acid number KOH/g, dielectric loss tangent tg δ, color, content of mechanical impurities, moisture content (when equipped with a TVO unit), etc.
1. Productivity, not less than:
a) in pumping mode, m3/hour - 4.0
b) 1) in degassing and drying mode, m3/hour - 1.2
c) in regeneration mode, l/cycle - 6000*2)
2. Oil parameters after treatment:
a) acid number according to GOST 5985, KOH/g, not more than 0.01
b) dielectric loss tangent according to GOST 6581 (tg δ), % at 90°C, not more than - 0.5
c) 1) moisture content according to GOST 7822, % (g/t), not more than - 0.001 (10)
d) mechanical impurity content according to GOST 6370, g/t, not more than - 10
e) ionol content, %, not less than - 0.3
f) class purity according to GOST 17216, not worse than - 9
g) 1) breakdown voltage according to GOST 6581, kV, not less than - 70
3. Oil loss during oil regeneration, %, not more than - 0.5
4. Number of adsorbers (adsorbers A and B), pcs. - 2
5. Amount of sorbent in the adsorber, kg - 300÷350
6. Number of sorbent reactivation cycles, cycle, more than - 400
7. Sorbent reactivation time with cooling, hours, no more than - 6+12=18
8. Oil temperature, °C:
a) in pumping mode - 20÷85
b) in degassing and drying mode - 40÷50
c) in regeneration mode - 65÷75
9. Nominal filtration fineness, µm, (three stages) - 50/20/5
10. Filtration coefficient (ß-coefficient), not less than - 400
11. Outlet pressure, MPa, not less than - 0.2
12. Nominal power of the oil heater, kW - 40
13. Supply voltage of a three-phase network with a frequency of 50 Hz, V - 380±10%
14. Maximum power consumption, kW - 65
15. Installed power, kW - 75
16. 3) Overall dimensions, mm, no more than:
a) Length - 4000
b) Width - 2230
c) Width - 2120
17. Weight, kg, no more than - 4400
