Dilo DA density controller B178R01

аrt.11

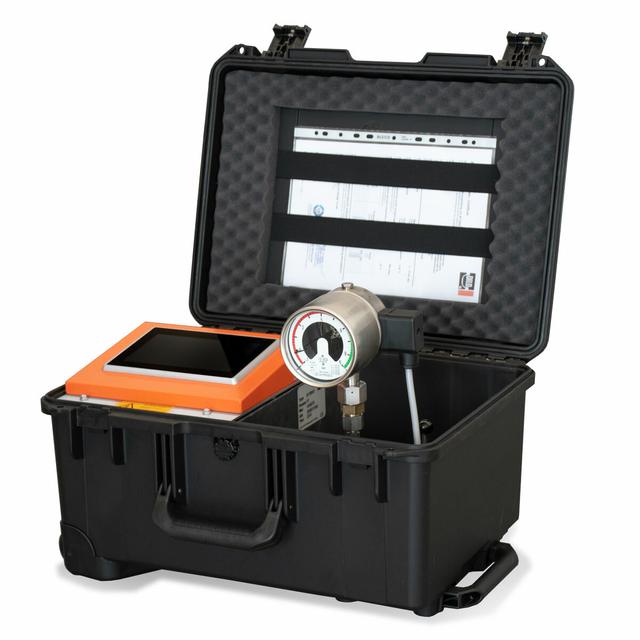

Dilo DA density controller B178R01

Dilo DA density monitor for automatic check of the switching points of density monitors.

on request
  • Descriptionarrow-down
  • Technical specificationsarrow-down
  • Documents (certificates)arrow-down
Description

Dilo DA density monitor for automatic check of the switching points of density monitors. Density monitors are important elements in gas monitoring. As safety equipment, they must function correctly. The DensiControl DA allows a quick check of the switch settings of a density monitor at specified parameters such as pressure and temperature. This device provides a quick, accurate check of the trip points. The density monitor type must be verified, selected from the database, and then set on the quick-clamp device. Once the measurement is started, the pressure is automatically increased to the fill pressure and the switch points are recorded. The switching points can be saved in the system with serial number and temperature indication, thus creating a data file for documentation.

Technical specifications

FEATURES


Automatic test process

Easy installation and removal of the density monitor with quick coupling

Easy handling and navigation with color touch screen display (5.7")Storage of 50 density monitors, including corresponding trigger points

Storage of up to 200 measurement results

Data transfer via USB stick and data output in the form of a test report

Selectable pressure measurement units

Customizable interface language: German, English and French Suitcase for easy transportation

Pressure indication in bar, psi, kPa, MPa



STANDARD EQUIPMENT


Case for transportation

Main unit with test container

5-point measurement certificate

Memory card for analyzing and reading measured data

1 operating instructions (multilingual) on CD
