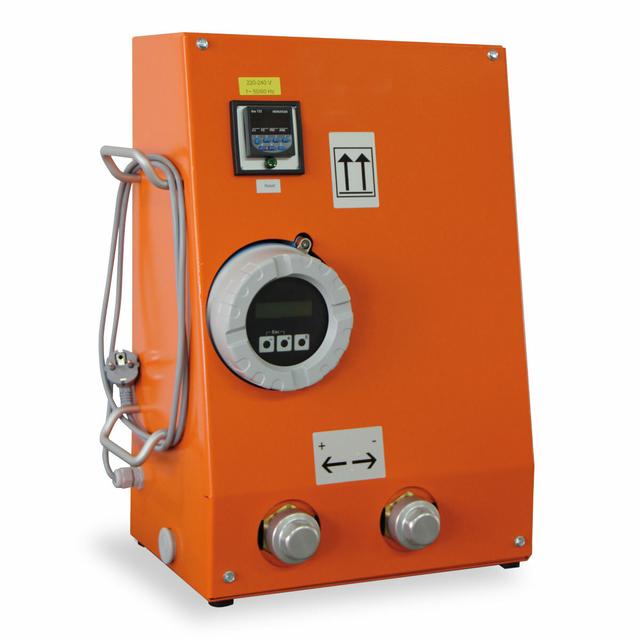

- Dilo B152R flow measurement system
.jpg&w=640&q=75)
аrt.17
Dilo flow measurement system for monitoring the volume of gas flowing from and to the switch.
- Description
- Technical specifications
- Documents (certificates)
Dilo flow measurement system for monitoring the volume of gas flowing from and to the switch. The battery operation allows the device to be used independently of the power supply. Gas monitoring is very easy with this device. The volume of gas that has been evacuated or refilled is recorded and can be transferred to a PC. The system displays the flow rate as well as the final mass. It is equipped with an additional meter that it is possible to zero, add or subtract gas volume values. Monitoring of the gas is very simple.
FEATURES
The system can be mounted either on a table or on a wall
Connection part DN20
Measuring accuracy for gas: 0.50 % ± 0.1 kg/h
PA modem with PC interface cable (available as an option)
Display in kg, optionally in lbs.
STANDARD EQUIPMENT
DILO connection with bore DN20
Metal cover
Color: orange (RAL 2004)
- Цвет: оранжевый (RAL 2004)
