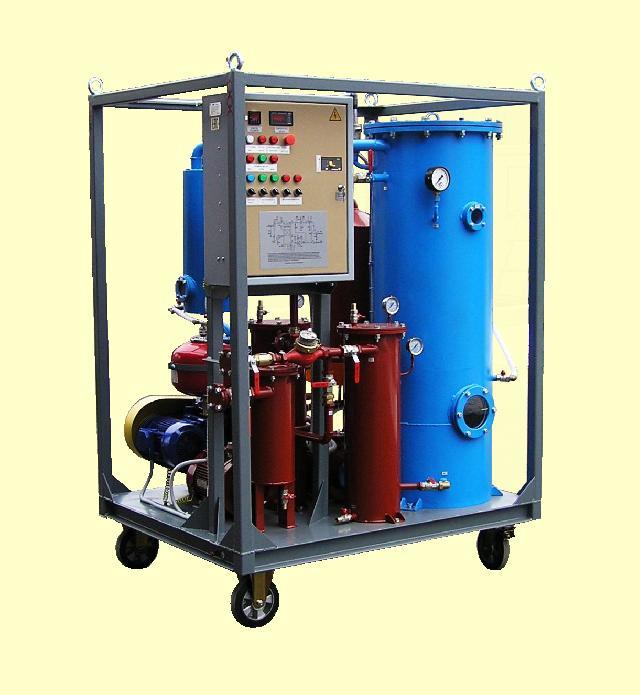

- ETMA UVS-3/5 U1
аrt.66
The ETMA UVS-3/5 U1 equipment (hereinafter referred to as the unit) is designed for thermal vacuum drying, degassing, heating, filtration, and pumping of transformer oils used in power transformers and other oil-filled equipment with voltages up to and including 1150 kV. The equipment can be used to heat oil-filled equipment with hot oil, as well as to treat turbine oils and other mineral oils that do not contain emulsified moisture.
- Description
- Technical specifications
- Documents (certificates)
The equipment is used at power plants, substations, and other energy facilities involved in the installation, repair, and maintenance of power transformers and other oil-filled equipment. The equipment can also be used in oil storage facilities where transformer and other oils are stored.
1 Productivity, m3/h:
a) in thermal vacuum drying mode up to 3.0
b) in heating, filtration, and pumping mode up to 5.0
2 Initial oil parameters:
a) moisture content by mass, g/t, no more than 100
b) oil purity class, no worse than 13
3 Achievable oil parameters after processing:
a) *volume gas content, %, no more than 0.1
b) moisture content by mass, % (g/t), no more than 0.001 (10)
c) mechanical impurity content, g/t, no more than 10.0
d) oil purity class according to GOST 17216 9
e) breakdown voltage according to GOST 17216, kV, no less than 65
4 Nominal filtration fineness, µm (three stages) 200/25/5
5 Filtration coefficient (β-coefficient), not less than 400
6 Outlet pressure, MPa, not less than 0.3
7 Residual pressure in the vacuum chamber, kgf/cm2 minus (0.90-0.98)
8 Nominal power of the oil heater, kW 36.0
9 Supply voltage of a three-phase network with a frequency of 50 Hz, V 380±10%
10 Maximum power consumption, kW 50
11 Overall dimensions, mm, not more than:
a) Length 1550
b) Width 1250
c) Height 2100
12 Weight, kg, not more than 1150
