Devices for pumping out and filling with gas

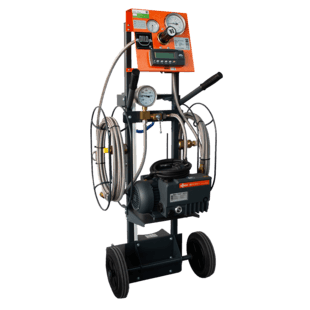

DILO 3-001-4-R022A (3-001-4-R122A) SF6 gas refilling- and evacuating device with digital weighing scales 0 - 120 kg (0 – 150 kg), mobile as cylinder cart with wire-braided hose

аrt.36

DILO 3-001-4-R022A (3-001-4-R122A) SF6 gas refilling- and evacuating device with digital weighing scales 0 - 120 kg (0 – 150 kg), mobile as cylinder cart with wire-braided hose

For safe refilling of SF6 gas into gas compartments by overpressure

on request
  • Descriptionarrow-down
  • Technical specificationsarrow-down
  • Documents (certificates)arrow-down
Description

This device covers two important functions: The integrated vacuum pump allows the evacuation of air down to < 1 mbar so that no air/gas mixture is produced during the subsequent filling process. The use of gastight and selfclosing DILO couplings guarantees emission-free gas handling. The weight of the gas to be refilled can be conveniently registered (with the 3-001-4-R022 / R122 version) by means of the integrated weighing scales. The weight is indicated on the illuminated display which switches off automatically if the scales are not used for a longer period of time. Thanks to the tare function, the gas can be precisely quantified.

Technical specifications

Advantages & functions.



  • frame
  • hose reel
  • integrated serial interface for data exchange and monitoring
  • couplings can be exchanged without any gas loss
  • digital display with internal battery (IP65)
  • weight indication reversible from kg to lb
  • most common global cylinder connections available as accessories
  • power supply: internal battery (12 V / 2.5 Ah) with battery charger / running time in continuous operation up to 20 hours



Technical data



Ambient temperature 0 to +45 °C

Operating temperature 0 to +45 °C

Storage temperature -20 to +60 °C

Dimensions (W x H x D) 570 x 1510 x 720 mm

Weight 73 kg

Operating voltage 220 - 240 V

Frequency 50 - 60  Hz AC

Weighing range 0 - 120 kg with tare function / accuracy: ± 0.02 %

Protection class IP65

Documents (certificates)

По запросу
